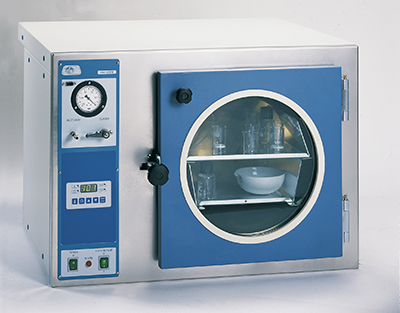

VACUUM DRY OVEN "VACIOTEM-T" *

Specifications

WITH ELECTRONIC DIGITAL TEMPERATURE AND TIME CONTROLLER. FOR ADJUSTABLE TEMPERATURES FROM 35 °C TO 200 °C. STABILITY ±1 °C, AT 100 °C. HOMOGENEITY ±3 °C, AT 100 °C. SET POINT ERROR ±2 °C. RESOLUTION 1 °C. CHARACTERISTICS Digital electronic temperature and time programmer controller, which allows the selection of pre-set time periods. Running timer range: From 1 min. to 9 h.59 min. or up to 99.9 h. Standby timer range: From 1 h. to 24 h. Pt100 temperature sensor. Heating elements surrounding its useful enclosure. Cylindrical interior enclosure in AISI 304 stainless steel. Anodised aluminium trays. Tempered glass inner door mounted on an elastic silicone support that allows absorbing all the expansions and contractions that may occur. Vacuum inlet with shut-off valve. Air intake on the front panel. Rear connector for the pump. External cabinet coated in epoxy. RS-232 output for reading and printing of parameters by computer. Max vacuum: 10-2 mmHg Capacity (l): 47 Ø / Depth int. (cm): 34/52 External dimensions (cm): 54x76x70 Device for tray guides: 2 Consumption (W): 2000 Weight (kg): 73
