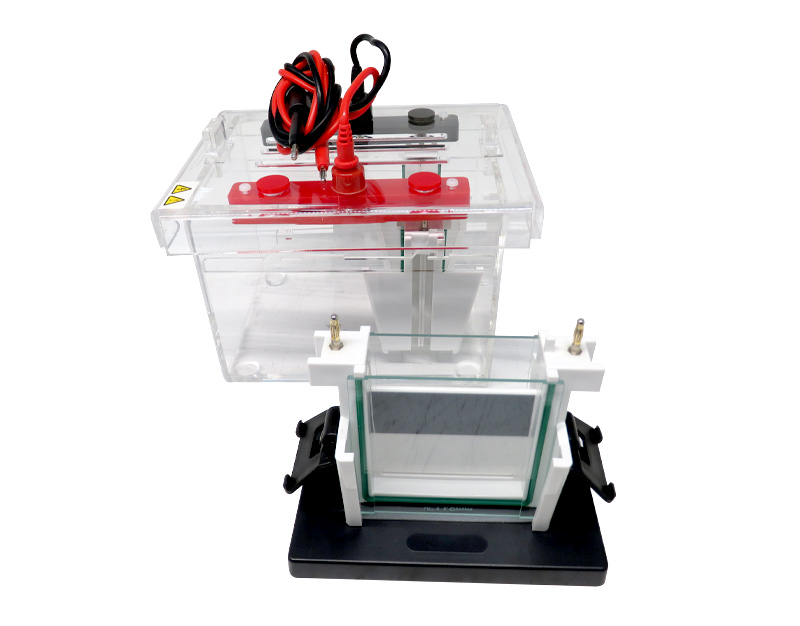

Vertical electrophoresis cell

Specifications

Complete: tank, lid with electrodes, gel support, gel casting device, plane and notched glass plates and set of combs

Specifications:

Number of gels: 1 or 2
Gel size (WxL): 82x88 mm
Glass plate size (WxL): 100x100 mm
Gel thickness: 0,75 mm / 1,0 mm / 1,5 mm
Number of samples: 11 or 15 per gel
Buffer volume: 750 mL
Dimension (LxWxH): 150x120x115 mm
Net weight: 1.5 kg

Accessories included:

Combs: 12
Wedged-shaped plates: 2
Gel shovel: 1
Dummy plate: 1
Spacer plates with 0.75 mm spacer: 2
Spacer plates with 1.0 mm spacer: 2
Spacer plates with 1.5 mm spacer: 2
Concave plates: 4
