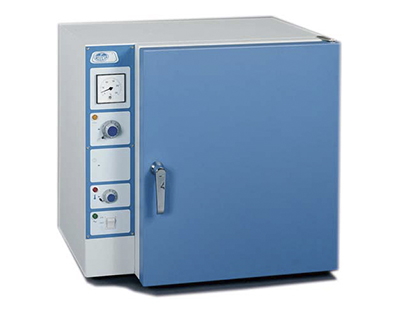

Oven CONTERM with digital themometer, 40°C to 250°C, 52 lit. 33X47X33

Specifications

Of natural convection. With temperature regulating thermostat and digital thermometers.
For adjustable temperatures from 40ºC to 250ºC
Stability: ±0.5ºC, at 150ºC. Homogeneity: ±1.5ºC at 150ºC

SECURITY:
EN 61010 standard. Built-in fixed overheating limiter.
DIN 12880 standard. (Class 2 and 3.1) Built-in adjustable safety thermostat.

Building.
1. Exterior cabinet treated and covered in epoxy, resistant to corrosive environments.
2. Interior elements: double chamber, useful enclosure (easy to clean), storm door, supports and height-adjustable trays, made of stainless steel. AISI 304.
3. Independent chamber, sized to facilitate the assembly of all kinds of instruments for regulation and control.
4. Adjustable outside air intake.

Technical properties.
5. Excellent insulation that allows to achieve an optimal relationship between heat capacity and consumption, limiting the external temperature.
6. Independent chamber air-mounted heaters for uniform temperature distribution and rapid stabilization.
7. Rack support with guides for height-adjustable trays.
8. Double textured door seal.
9. Floating storm door that presses regularly on the joint of the useful enclosure, absorbing thermal expansion.
10. Adjustable closure that allows you to adjust the pressure of the door.

*Turbine motor group for models with air circulation. Interior door in tempered glass for bacteriological and culture models.

NOTE:
For all models, the stability and homogeneity values are understood with the ventilation devices closed.
Optimum temperature homogenization is achieved with a reasonable distribution of space and load, not exceeding 70% of the useful volume.
The temperature graphs indicated in each model are calculated according to this criterion.
