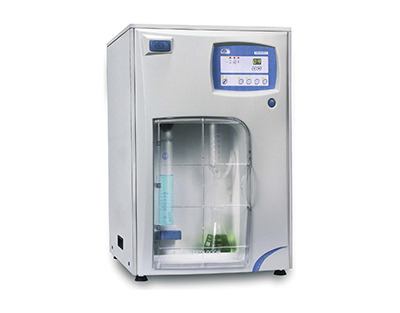

DISTILLING UNIT PRO-NITRO S *

Specifications

FOR ORGANIC NITROGEN DETERMINATION (KJELDAHL METHOD).
AUTOMATIC DOSING OF BORIC ACID AND NaOH. SAMPLE DISPENSING AND TIMED STOP.
Kjeldahl distillation apparatus with a high degree of automation that allows for systematic, simple, and safe analysis. Suitable for laboratories with a medium or large sample volume.
Steam distillation unit. Compact steam generator with overtemperature safety thermostat and overpressure protection pressure switch. Safety door that prevents distillation with the door open. Detection of presence of digestion/distillation tube. This device prevents NaOH dosing if there is no tube. Universal adapter for MACRO (Ø 42 mm) and MICRO (Ø 26 mm) digestion/distillation tubes. Space-saving in the laboratory: H2O, NaOH, and H3BO3 tanks are housed inside the equipment. Digestion/distillation tube emptying system. Stainless steel frame and ABS plastic front. 2-digit green LED display. Allows for distillation programming (NaOH addition, boric acid dosing, distillation time, and sample dispensing). Automatic titrator adaptation kit.
Measurement range: 0.1 to 200 mg Nitrogen. Programmable distillation time. Nitrogen recovery: > 99.5%. Distillation speed: 35 to 40 ml/minute. Typical distillation duration: 7 to 10 minutes. Cooling water consumption: 80 to 100 liters/hour. Steam generator water consumption: 2.5 liters/hour. Steam generator water tank capacity: 6 liters. NaOH tank capacity: 2 liters. Boric acid tank capacity: 2 liters.
